Mardome Trade AOV Access Smoke Vent

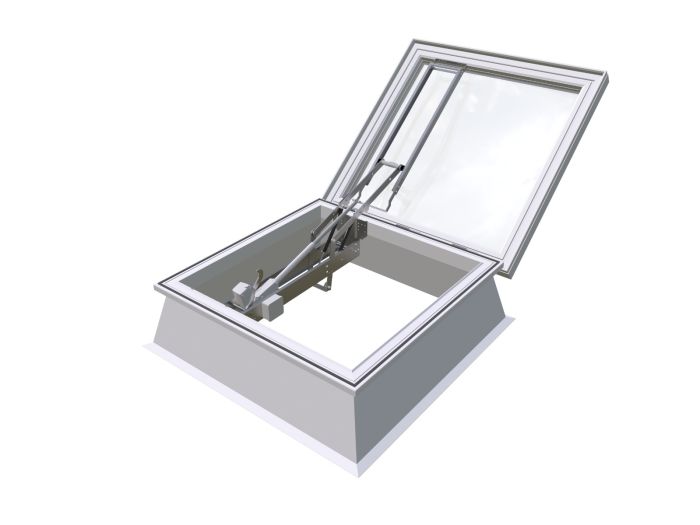

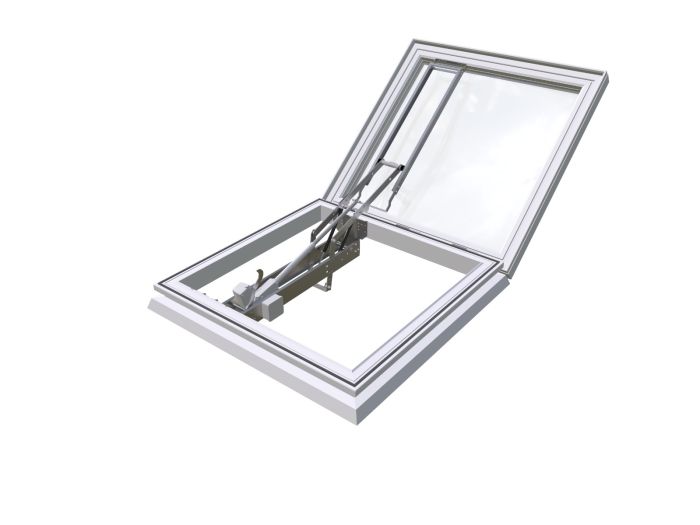

Mardome has created a unique solution for those wanting an AOV smoke vent which also gives you the practicality of an access hatch. By moving the actuator to one side, enough space is created to gain access to the roof.

Designed to Highest Quality

Our Mardome Trade Smoke Vents with Access are designed and manufactured under an ISO9001 approved quality system. Our Smoke Vent products are fully tested and certified in accordance with EN12101-2:2003.

Our Mardome Trade Smoke Vent is guaranteed to remain fit for purpose in normal industrial conditions for a period of 10 years.

Secure Installation

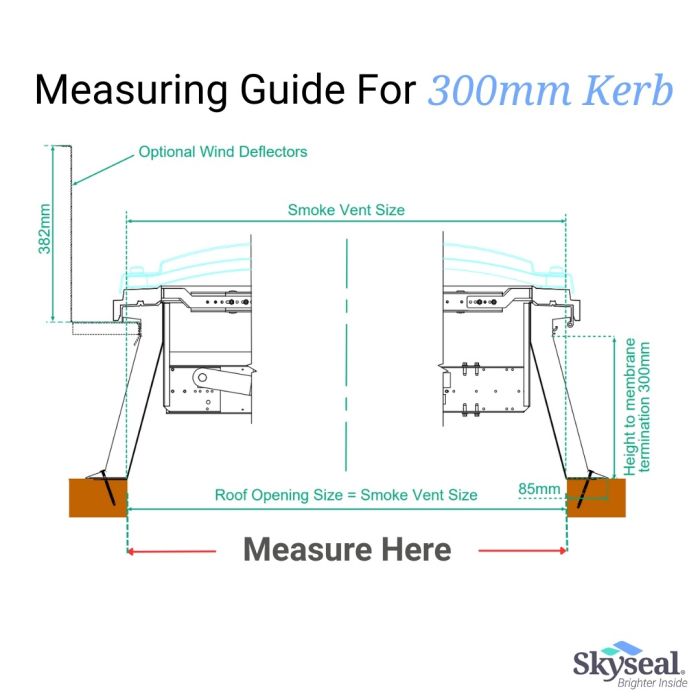

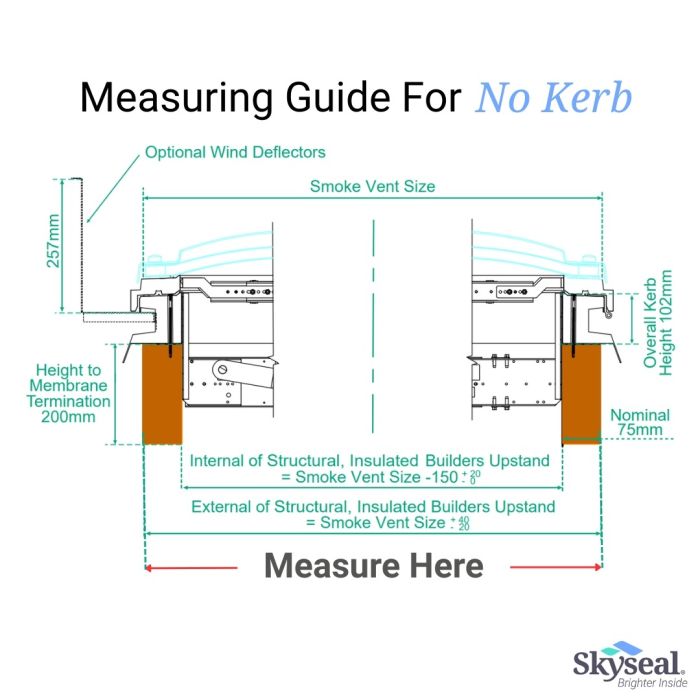

• 100mm vertical direct fix kerb (for mounting to 200mm high builders upstand)

• Achieve Class B non-fragility to ACR[M]001 when installed in accordance with Brett Martin installation guides

• Achieve Class B-s1,d0 to BS EN 13501: Part 1. Building Regulations state they can therefore be regarded as BROOF(t4)

Designed for Ease of Use

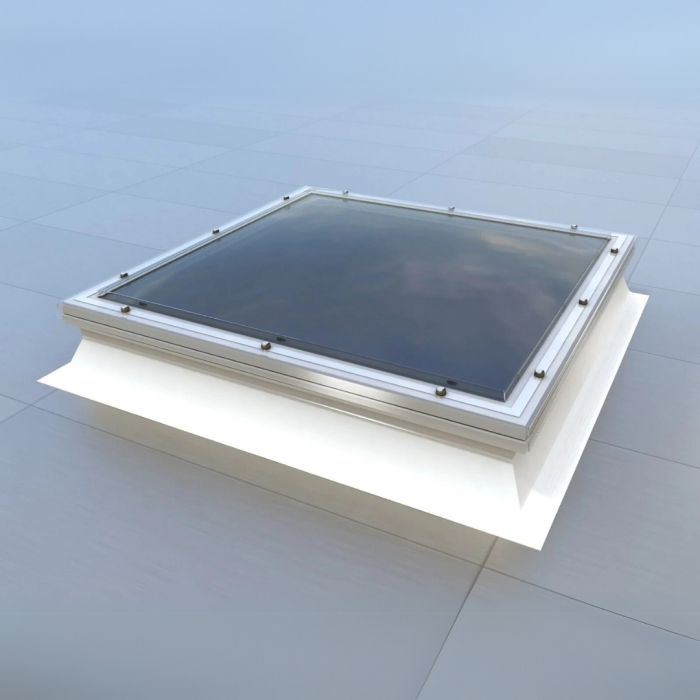

Mardome Trade Smoke Vents are individual polycarbonate dome rooflights intended for installation on flat roofs of all modern building types to provide natural smoke and heat exhaust ventilation and comfort ventilation.

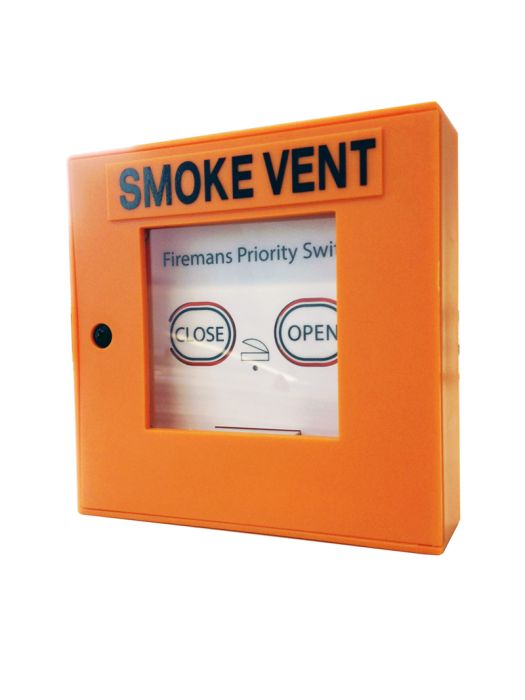

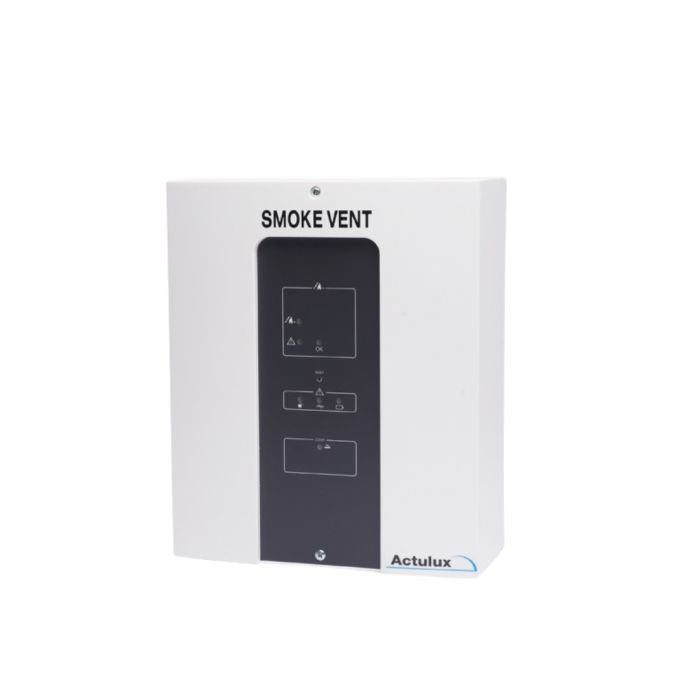

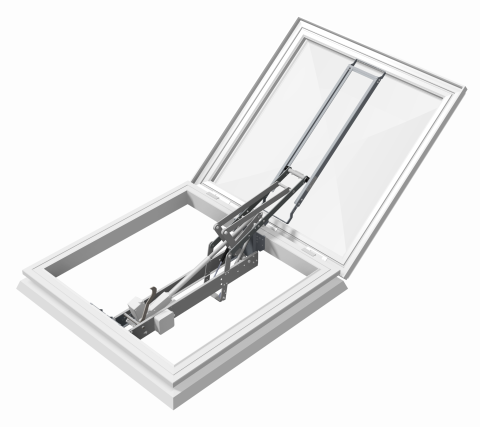

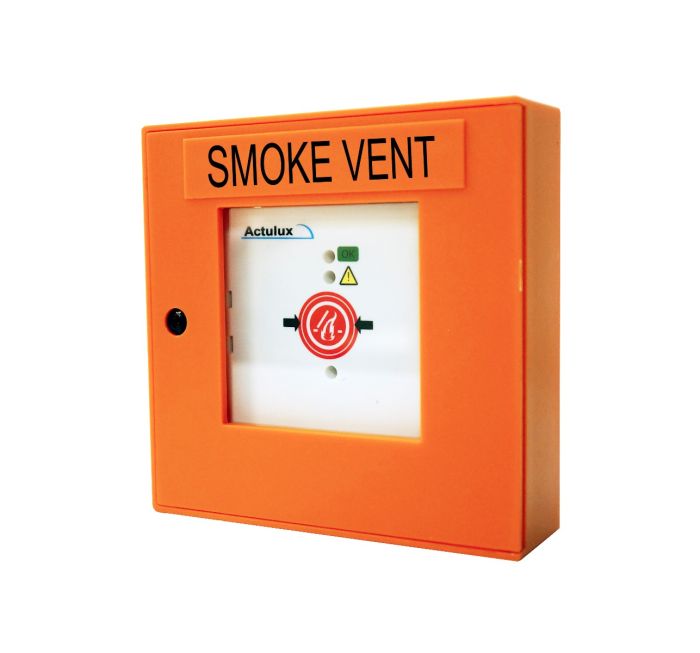

The factory fitted 24V electrical actuator opens up to 140 degrees in less than 60 seconds. There is also a full range of available options including Control Panel System, Fire Switch, Fireman’s Priority Switch and Smoke Detector.

Thermally Efficient

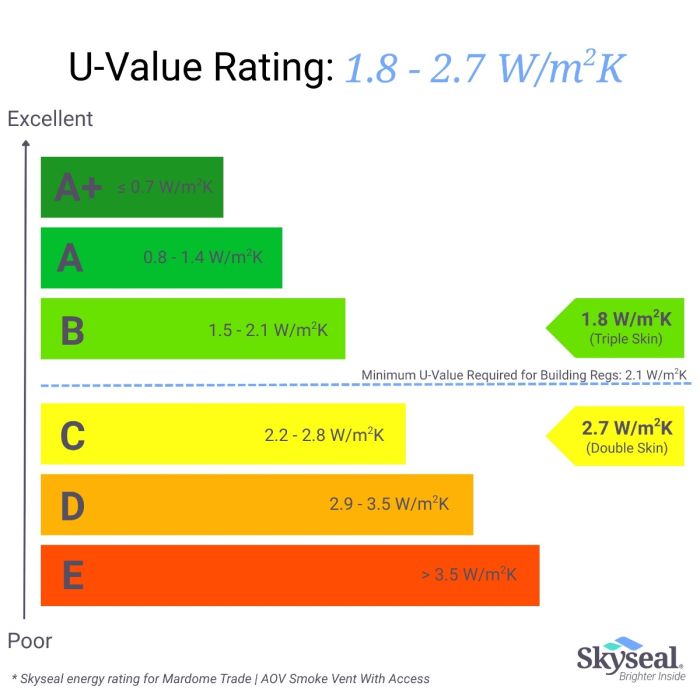

With the choice of a double or triple skin AOV Smoke Vent, you can experience U-values of up to 1.8W/m²K, keeping your home warmer during the winter months.

Specifications:

• 3mm impact resistant Marlon FSX polycarbonate outer dome (with UV protective coating on both sides)

• 2mm impact resistant Marlon FS polycarbonate inner domes (for double/triple skins)

Advantages:

• Low profile dome

• Opens in less than 60 seconds

• Durable and secure

• Thermally efficient (with U-values of up to 1.8W/m²K)

• Allows access to roof

• 10-year warranty

• Highly customisable to suit your next project

Mardome Trade Access Smoke Vent - AOV

Mardome has created a unique solution for those wanting an AOV smoke vent which also give you the practicality of an access hatch. By moving the actuator to one side, enough space is created to gain access to the roof.

Mardome Trade Smoke Vents are individual polycarbonate dome rooflights intended for installation on flat roofs of all modern building types to provide natural smoke and heat exhaust ventilation and comfort ventilation.

Mardome Trade Smoke Vents are designed and manufactured under an ISO9001 approved quality system. These products are fully tested and certified in accordance with EN12101-2 : 2003

• Design fully tested and certified in accordance with EN12101-2 : 2003.
• Guaranteed to remain fit for purpose in normal industrial conditions for a period of 10 years
• Factory fitted 24V electrical actuator opens up to 140 degrees in less than 60 seconds
• 100mm vertical direct fix kerb (for mounting to 200mm high builders upstand)
• Achieve Class B non-fragility to ACR[M]001 when installed in accordance with Brett Martin installation guides
• Achieve Class B-s1,d0 to BS EN 13501: Part 1. Building Regulations state they can therefore be regarded as BROOF(t4)

A full range of available options includes Control Panel System, Fire Switch, Fireman’s Priority Switch and Smoke Detector. Please call us on 024 76 707700 if you would like to discuss any of these additional options
